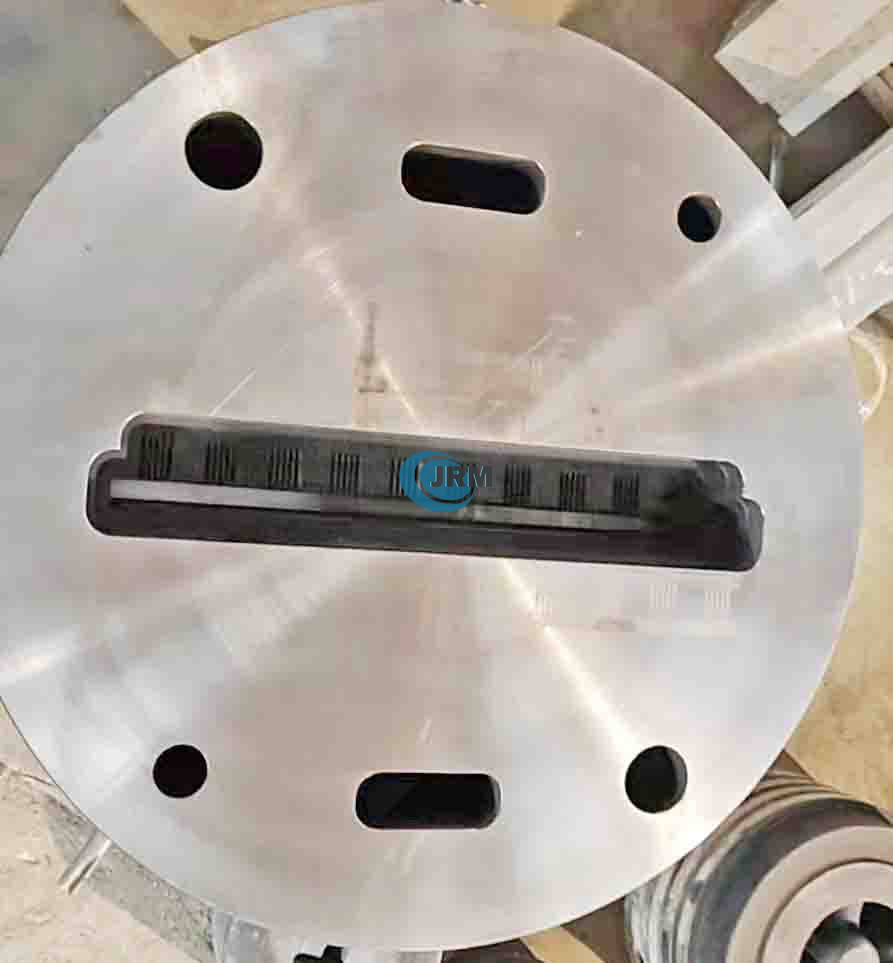

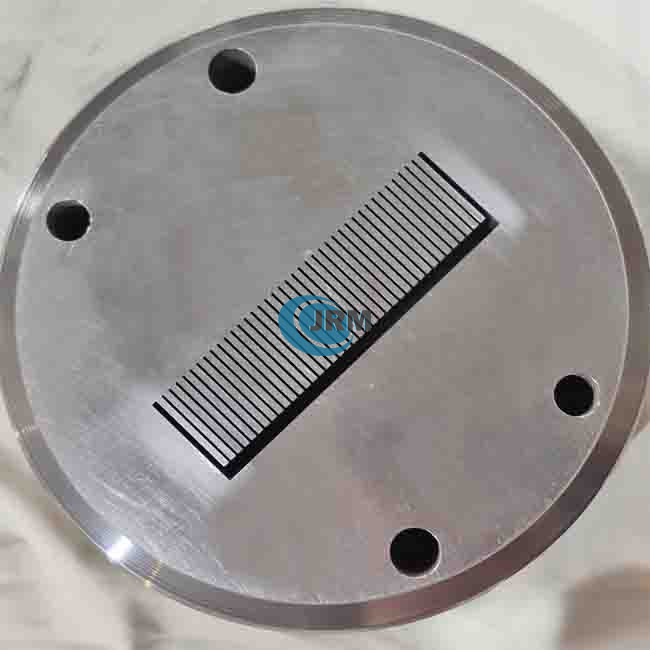

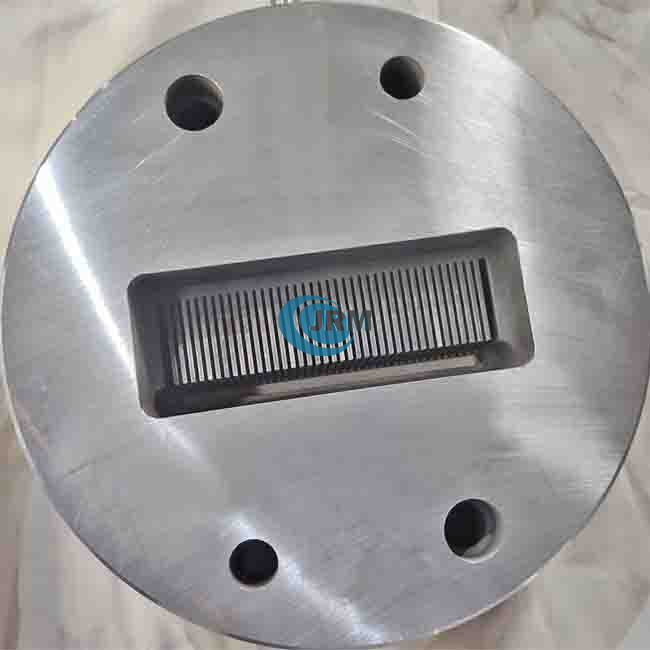

Aluminium extrusion die for Heat sink

Aluminium extrusion die for Heat sink

Inquiry
Category:

Aluminium extrusion die for heatsink

Heat sink aluminium extrusion die

Product Introductions of Aluminium extrusion die for Heat sink :

Aluminium extrusion die design and die making are the most important and demanding aspects of the entire aluminium extrusion processing.To meet customer’s quality requirements, the performance of the aluminium extrusion die is very critical. Aluminium extrusion die performance impacts product quality,productivity, recovery, and product design. The demands made on aluminium extrusion profiles for tolerances and on dies for die life and trial runs are becoming greater and greater. Effective use of extrusion die technology enhances the ability of an aluminium extruder to meet customer needs. Under the use of the latest manufacturing technologies,we are employing modern high technology equipment, high quality die steel (also imported from Japan,Sweden etc), and advanced heat treatment processes to produce aluminium extrusion dies with high tolerances, to concentrate on quality, flexibility,and reliability in order to best ensure customer satisfaction at a faster rate with a competitive price.

Aluminium extrusion die design and production involves a complex mixture of design (using computer aided design, CAD, systems) and machining(using computer numerical controlled, CNC, and electrical discharge machining, EDM processes. Now we are using computer aided industrial design (CAID) and computer aided industrial machining (CAIM) to produce reproducible dies.

Our desingers are with more than 30 years experience,can give suitable solution according to customer requirements,for many year development we import equipment from Japan,Italy,Tawiwan to improve machining precision.For complex dies like heat sink,automobile,rail we also can give consultation and manufacturing service.

In addition to aluminium extrusion die design and manufacturing, die correction is a very important aspect of aluminium extrusion working, including modifying the dies.According to customer’s requirements,we can offer online remote die correction service,also our engineer can go to customer’s site.

6.Product Specifications of Heat sink aluminium extrusion die:

Number Item Descriptions
1 Product name Heat sink aluminium extrusion die
2 die size 30 to 1300mm
3 Available section thickness 0.4mm above
4 Die materials H13 steel/8407/SKD61 etc
5 Die type Hollow die,Solid die,heatsink
6 Hardness HRC 48-56
7 Cavities as per design
8 Way Of Heating vacuum heat treatment
9 Delivery Time 7-15 working days
10 Flow Manifold Computer simulation
11 Application aluminium extrusion die and tooling for the extruders to produce aluminum profiles, such as window profiles, industrial profiles, door profiles and profiles for curtain wall, etc
12 Package Wooden box or carton box



Aftersale service and die correction

1).when order confirmed,we will send you drawings for approval,then start production.
2).we offer quick delivery for customers to meet production requirements
3).offer die correction advices if needed
4).for long term cooperated customer,we send engineer for site instruction
5).professional in complex dies for heatsink aluminium extrusion die,roll up door extrusion die,large size extrusion die,zero bearing die,tungsten steel aluminium extrusion die etc.

Company Introduction:

We JRM focus on supply the complete copper and aluminium extrusion equipment and related spare parts,such as aluminium extrusion press,aluminium profile extrusion production line, single puller,double puller,cooling table,billet heating furnace,hot shear,hot sawing machine, die heater, aging oven, aluminium melting furnace, aluminium billet casting line, aluminium dross recycling machine,and aluminium profile polishing machine,aluminium profile powder coating line, aluminium profile anodizing line,aluminium wood transfer machine,also we supply aluminium extrusion parts and toolings,aluminium extrusion die,extrusion container,container locking ring,extrusion stem,loose dummy block,fixed dummy block,butt shear,hight tempreature roller sleeve,endless belt etc.

We ROYAL focus on research, design, manufacture, development and export of aluminium profiles extrusion production machinery and supply related spare parts.We not only can supply the complete equipment of aluminium extrusion production project and offer very competitive price to suit budget with thoughtful aftersale service.

In addition, we have experienced engineers with over 30 years experience,can offer professional extrusion technology suggestions and consultation for the equipment selection, plant layout design and product manufacturing.At the same time, we have our own special foreign installation team for line installation,commissioning and training etc.
