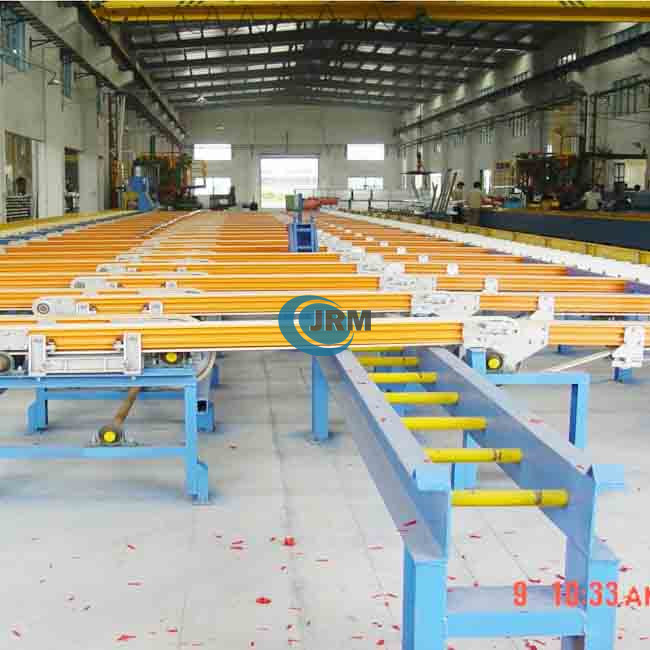

Aluminium profile handling table
Aluminium profile handling table
Aluminium profile handling table
Aluminum profile handling table including lead table, water/air/mist cooling, run out table,catching table, cooling table, storage table , stretcher, final saw with chips collector etc.
Lead table length is customized, equiped with water tank system for queching or three functions of water/air/mist cooling .
Extrusion puller machine will match with the length of handling table.
Depend on profile weight and billet diameter size, will add convey chain on basis of transfer felt and roller.
One-man stretcher , two -man stretcher are all available, PLC control, HMI operation to realize automatic,stretcher pressure are adjustable.
Final saw realize automatic length sized, touch screen operation, PLC control, after finished saw, automatic convey table are available.
6inch-152mm Aluminium extrusion profile handling table
1.Aluminium profile handling table Includes initial table, handling table, profile take out table, cooling table, profile transmission table, stretcher,storage table, saw table, finished saw, length sized table, electrical control system etc.
2.Suitable for extrusion press：1400T-152mm
3.Production type: four level belt transmission, all belt can be changed individual
4.handling table size: L50m*W6.5m*H0.8m-1m gap,initial table:8m
5.Stretcher: hyraucli clamp,force：60T
6.Finished saw size: maximum saw size: W600mm* H160mm, auto water spraying to cooling saw
7.Length sized size: manual push trolley to walk, manual lock trolley length sized device.
8.Length sized table: effective length is 1~7m
9.Electrical control Use Schneider brand , Mitsubishi PLC
Advantages of Aluminium profile handling table
1.Utilizes effective cooling options such as air cooling, water cooling, or speciallydesigned cooling structures to accelerate heat dissipation and significantly reduce cooling time.
2.Features PLC control systems, enabling automatic feeding, conveying, anddischarging functions. This reduces manual intervention, enhances production efficiency, and ensures product quality consistency.
3.Adjustable components and interchangeable parts make it suitable for variousaluminum profiles with different specifications and shapes, meeting diverse production requirements.
4.Cooling tables are equipped with pneumatic fixed-length saws, offering high cutting precision
5.Components are easy to dismantle and replace, simplifying daily maintenanceand reducing repair costs and downtime. This enhances equipment lifespan and operational reliability.
6.The cooling table integrates seamlessly with aluminum extrusion presses, pullers,aging furnaces, and other production equipment, creating a fully automated and continuous aluminum profile production line.
