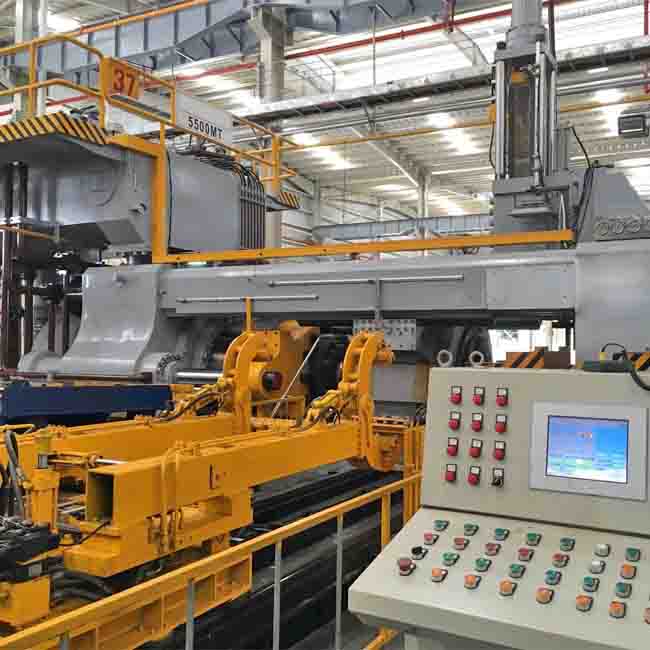

700 Ton 101mm 4 inch aluminium extrusion press machine
700 Ton 101mm 4 inch aluminium extrusion press machine
700 Ton 101mm 4 inch aluminium extrusion press machine
1.1 Technical Datas of aluminium extrusion press machine
Total Extrusion force： 703T
Extrusion pressure： 22Mpa
Billet size： φ101mm×600mm
Main cylinder force 634T
Side cylinder force 34.5×2=69T
Main plunger stroke 1200 mm
Extrusion speed(adjustable) 0.2～11 mm/s
Main plunger forwarding speed 300 mm/s
Main plunger back speed 290 mm/s
1.2 Extrusion container of aluminium extrusion press machine
Container locking force（adjustable） 64T
Container open force 40T
Container stroke 300 mm
Container inner diameter φ105 mm
Container length 620 mm
Container locking speed 110 mm/s
Container open speed 160 mm/s
1.3 Main cylinder of aluminium extrusion press machine
main plunger：φ600 mm
Stoke:1200mm
Side cylinder: φ140mmXφ110mm 2 PCS
Stroke:1200 mm
1.4 container cylinder of aluminium extrusion press machine
Cylinder: φ125mmXφ70mm 4 PCS
Stroke: 300mm
Locking force 68T 4pcs
Container: φ416mm×620mm
Container inner diameter： φ105mm
Container heating type：Electric heating。
Container heating power：1.1KW ×15 16.5KW
1.5 Die slide
Die slide size：φ200mmx210mm
Cylinder：φ110Xφ70
Cylinder stroke：650mm
Die ring diameter： φ198mm
1.6 Shear system (with butt system)
Shear cylinder：φ140mmx100mm
Shear force：(adjustable) 22T
1.7 Oil tank volume
Oil tank volume：2200L
1.8 Cooling system
Plate heat exchanger 12㎡
Pressure：0.1~0.2Mpa
1.9 Hydraulic system of aluminium extrusion press machine
Main pump
A15VSO210 31 MPa 210L /min 1set Rexroth Made in Germany
Auxiliary pump
SQP43-60-38 17 MPa 1Set Tokyo Keiki Made in Japan
Main hydraulic valve JeouGang Made in Taiwan
1.10 Electrical system of aluminium extrusion press machine
AC contactor Schneider Made in France
Intermediate Relay Omron Made in Janpan
Proximity Switch Omron Made in Japan
Air Switch Schneider Made in France
PLC Mitsubishi Made in Japan
Touch Screen. Flexem Made in China
Linear Variable Displacement Transducer: Gefran Made in Italy
Constant speed sensor: China
Main motor 75KW-6 pole YE3 1set Dongguan
Cooling motor 4 KW-2 pole 1set
1.11 Main Part Materials of aluminium extrusion press machine
Main cylinder forged steel
Plunger Chilled alloy cast iron
Front beam cast steel (35#)
Tie rod forged steel 40Cr
Moving beam cast steel (35#)
Container out forged steel 5CrMoMn
Container liner H13 steel
1.12 Machine weight and size of aluminium extrusion press machine
Dimension:8500mmx2850mmx3100mm
Weight:31000kgs
